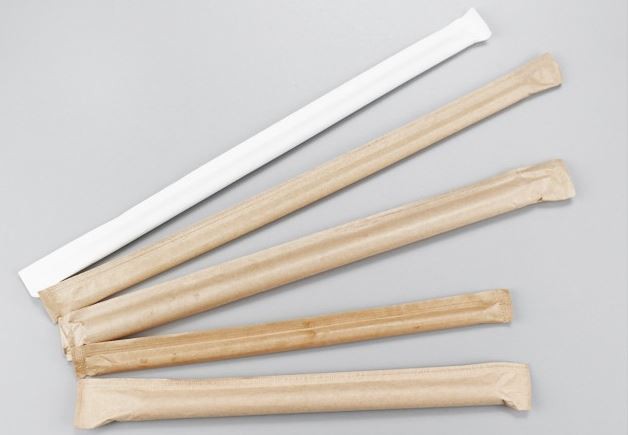

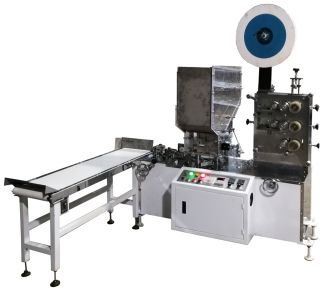

SL-01 series are used to packing drinking straws in three sides sealing bag, printing function is available when using paper as packing material.

Characteristics:

1) Having two colors printing device can be chosen

2) With automatic product counting function, product quantity may pre-set, once the pre-set value is reached. the machine will give an alarm.

3) Printing, feeding, and packing can complete in one processing.

4) Packing straw length is adjustable within a certain range.

Specification

Model	SL-01	SL-01-P1/2
Drink Straw Diameter(mm)	5(±1), 10(±2)
Straw Length(mm)	100-200(±20) By adjust the sealing and cutting mould, printing cylinder
Packing Model	Paper type: wrap paper Sealing type: 3 side sealing Paper width: 25-30mm
Production Speed	With printing：300pcs/min Without printing＞400pcs/min
Printing	Non	Single/Double Colour
Driving motor	1.1kw,with inverter controlled
Paper Unwinding Frame	1SET Tension adjust：Mechanical tension device, adjusted by manual Wrap paper roller core size：3inch，4.7inch
Straw feeding hopper	Material :Stainless steel frame， Plexiglass: Adjustable to match straw length Straw down device：synchronous motor and swing arm Feeding model：by chain feeding
Printing Unit	/	Single/Double Color Power transmission ：By chain Between printing unit: By gear Traction unit：1sets, rubber roller andchrome plated roller Printig unit：Ink container, anilox roller, doctor blade, printing cylinder, rubber roller Dry fan：1SET , with heating function colour register：By manual

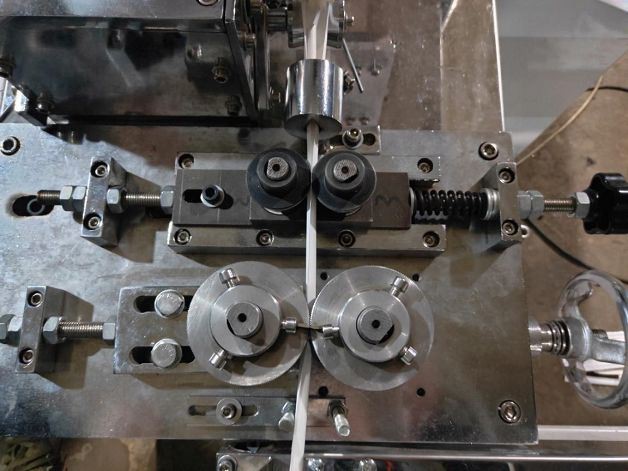

Sealing and cutting device	Lengthways sealing：Sealing roller-on couple，pressure adjusted by manual Horizonta：Sealing roller-on couple，pressure adjusted by manual, with cutting knife-one couple Material：mould steel With manual adjust wheel
Conveyor Belt	1sset， Synchronous reduction motor+ controller
Controller	Counter and buzzers：1set Inverter： 1.1KW, Schneider Temperature controller：1set Speed meter：1set
Total Power (Kw)	1.5 (220V)
Over size (mm)	1900×1000×1600 (L×W×H)
Weight (Kg)	400
